What is RTLS? The Complete Guide to Real-Time Locating Systems

In today’s fast-moving, data-driven world, businesses demand more than just speed—they require precision, visibility, and control over their operations. Whether it’s a hospital managing life-saving medical devices, a warehouse trying to locate high-value goods, or a factory optimizing production flow, knowing exactly where things are in real time is critical. This is where RTLS, or Real-Time Locating Systems, come into play.

I. What is RTLS and How Does It Work?

1.1 Definition of RTLS

RTLS (Real-Time Locating System) is a technology that enables the automatic identification and tracking of objects or people in real time or near-real time within a defined area. This data is gathered and transmitted without the need for manual input.

RTLS typically operates in indoor environments such as hospitals, warehouses, factories, and airports—places where GPS signals are unreliable or unavailable. It uses wireless tags attached to assets and a network of fixed reference points to determine location.

Unlike systems that only provide static or historical location data, RTLS offers continuous updates. This allows for a live feed of movement and presence throughout a facility.

Depending on the technology used, RTLS can deliver highly precise location data—sometimes accurate to within just a few centimeters. This level of detail gives organizations greater visibility and control over their assets and operations.

1.2 Basic Architecture of an RTLS

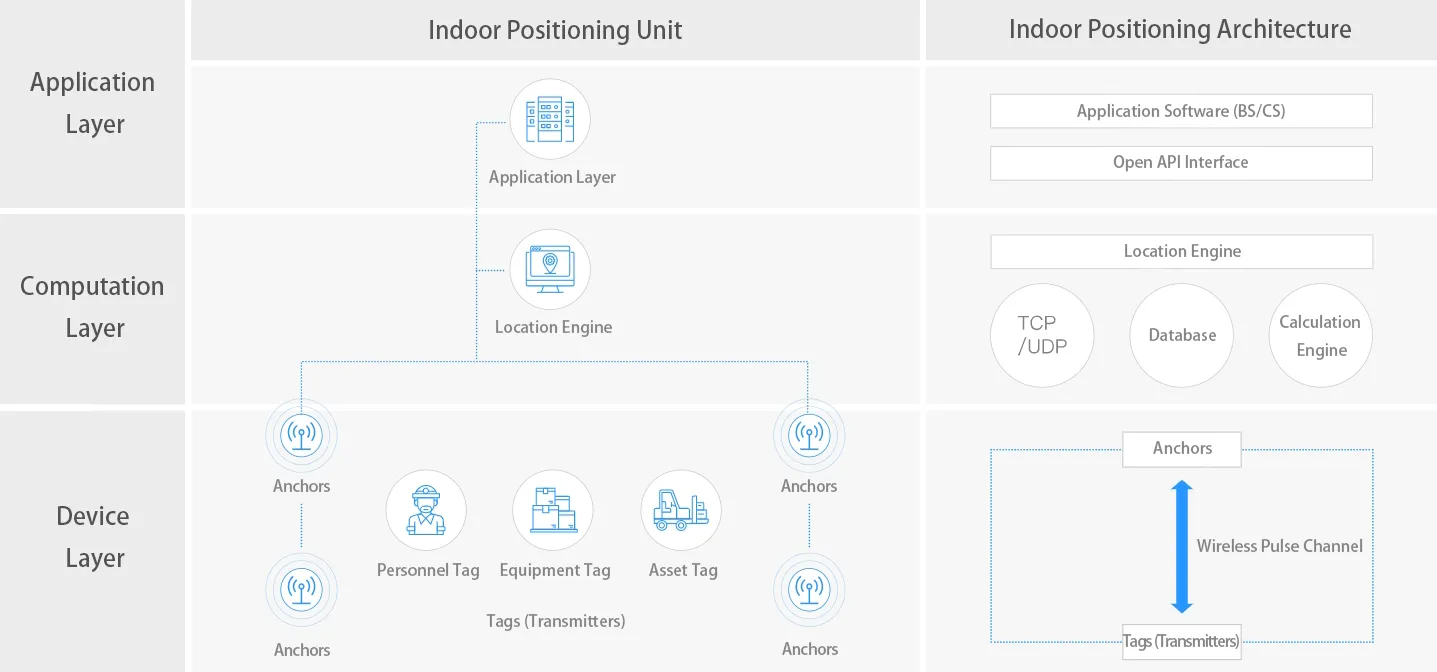

In the following section, we use reference diagrams from TSINGOAL (Beijing) Technology Co., Ltd. to illustrate the basic architecture of an RTLS system. These images are presented for explanatory and educational use only.

A standard RTLS consists of four primary components:

A. Tags (Transmitters)

What it is:
A small device attached to an asset, person, or piece of equipment you want to track—such as a forklift, tool, patient, or employee.

Function:
It emits a wireless signal using technologies like Bluetooth, UWB (Ultra-Wideband), or RFID.

Types:

• Active Tag: Battery-powered and capable of actively transmitting signals. These typically offer higher accuracy.

• Passive Tag: No internal battery; it relies on an external signal (e.g., from an RFID reader) to activate. It’s lower cost and less accurate but useful for certain applications.

B. Anchors (Readers or Sensors)

What it is:
Fixed devices installed throughout a facility—on ceilings, walls, or pillars.

Function:
They receive signals from the tags and relay the data to the backend system.

Analogy:
Think of anchors as “ears” that listen to what the tags are “saying.”

C. Location Engine

What it is:
The software “brain” of the RTLS.

Function:
It processes the data collected by the anchors and calculates the real-time coordinates of each tag.

Common Algorithms Used:

• TDoA (Time Difference of Arrival)

• RSSI (Received Signal Strength Indicator)

• AoA (Angle of Arrival)

These methods allow the system to triangulate the tag’s position with varying levels of accuracy, depending on the technology.

D. Application Layer

What it is:
The part of the system that users interact with—the user interface.

Functions:

• Real-time map or dashboard to display positions

• Trigger alerts (e.g., if an asset leaves a designated area)

• Generate reports or view historical movement data

• Integrate with external systems like ERP (Enterprise Resource Planning), MES (Manufacturing Execution System), or WMS (Warehouse Management System)

1.3 RTLS Operational Workflow

While RTLS systems are built from several hardware and software components, it is their coordinated interaction that enables accurate, real-time location tracking. This section outlines the step-by-step operational flow of a typical RTLS in action—how raw signals become actionable location data.

Step 1: Tag Emission Initiates the Process

The process begins when a tag, attached to an asset or person, emits a wireless signal. This can be a periodic broadcast (in the case of active tags) or a triggered response (in passive systems like RFID). The signal typically contains a unique ID that identifies the tag.

• Technologies used: UWB, BLE, RFID, Wi-Fi, etc. These technologies vary widely in performance, cost, and complexity—a topic we’ll break down in Chapter III.

• Emission interval depends on the required refresh rate and power constraints.

Step 2: Anchors Detect the Signal

Anchors (fixed reference devices) deployed throughout the environment detect the signal from the tag. The more anchors that receive the signal, the more accurate the eventual position calculation.

Each anchor records metadata such as:

• Signal strength

• Time of arrival

• Signal angle (if equipped)

This raw data is then transmitted to the central processing system.

Step 3: Data Aggregation and Synchronization

The collected signal data from multiple anchors is sent to a central location engine. Before location can be calculated, the system synchronizes the data and filters out noise or weak signals that may distort results.

This step is crucial in environments with signal reflection (multipath effects), interference, or moving assets.

Step 4: Location Calculation by the Engine

The location engine applies positioning algorithms to the signal metadata to estimate the tag’s coordinates. The choice of algorithm (e.g., triangulation, multilateration, fingerprinting) depends on the deployed technology and accuracy requirements.

• The output is a set of coordinates (e.g., x, y, z)

• Location is calculated either continuously or upon specific triggers (e.g., motion detected)

Note: The underlying algorithms—RSSI, TDoA, AoA, etc.—will be detailed in Chapter IV.

Step 5: Real-Time Output via the Application Layer

Finally, the computed location data is pushed to the application layer, where it is:

• Displayed on live dashboards or facility maps

• Used to trigger alerts (e.g., geofence breach, asset missing)

• Logged for reporting, analytics, or compliance

• Optionally integrated into third-party systems (e.g., ERP, WMS, MES)

This layer transforms raw location coordinates into business-relevant insights and actions, enabling operators to make real-time decisions.

Factory Use Case Example

Consider a large manufacturing facility using RTLS to monitor the movement of AGV (Automated Guided Vehicle) carts and specialized tools:

• Each AGV cart is fitted with a wireless tag that periodically transmits its unique signal.

• Anchors installed on the factory ceiling detect these signals as the carts move throughout the facility.

• The location engine receives signal data from multiple anchors and calculates each cart’s real-time position.

• In the control room, operations staff view live location updates on a centralized dashboard, set up zone-based alerts, and analyze movement patterns to optimize workflow and resource allocation.

This real-time visibility not only enhances operational efficiency but also helps prevent asset loss, bottlenecks, and safety hazards in complex industrial environments.

1.4 Want to See RTLS in Action?

To better understand how RTLS is implemented in modern factories, check out this insightful interview with Siemens’ Nicole Lauther on The Automation Podcast. She explains how SIMATIC RTLS enables real-time asset tracking and integration with automation systems:

The following video by Zebra Technologies demonstrates how RTLS can be effectively used in warehouse management—tracking pallets, containers, and other assets across large facilities using RFID-enabled infrastructure and their MotionWorks software platform.

II. RTLS Locating Models and How They Differ from GPS

While GPS is the gold standard for outdoor navigation, it falls short in indoor environments like hospitals, warehouses, and factories. That’s where RTLS (Real-Time Locating Systems) comes in—with its own unique set of locating models tailored for confined, signal-obstructed spaces.

In this chapter, we’ll explore two primary RTLS locating concepts—choke point locating and relative coordinate locating—and explain how these methods differ from GPS-based positioning in both system architecture and accuracy expectations. We’ll also discuss what factors affect RTLS accuracy in real-world deployments.

2.1 RTLS Locating Concepts: The Basics

RTLS doesn’t rely on satellites like GPS. Instead, it operates in local environments using fixed reference points (anchors or readers) and wireless tags attached to assets or people.

While GPS determines absolute global coordinates using signals from satellites, RTLS typically focuses on relative positioning within a defined indoor space. The design of the locating model—whether zone-based or coordinate-based—directly impacts accuracy, cost, and system complexity.

📌 Key point: The more well-positioned reference points (anchors) are deployed, the better the system can calculate precise locations—up to the limit of the technology being used.

2.2 Locating at Choke Points

Choke point locating is the simplest and most cost-effective RTLS architecture. Instead of calculating exact coordinates, it detects presence within a specific zone, such as a doorway, hallway, or equipment storage area.

How it works:

• A tag sends out a short-range signal.

• A fixed reader placed at a known choke point (e.g., entrance to a room) detects the tag’s presence.

• The system logs the tag as being “within” that area.

Alternatively, some systems reverse the logic: a choke point transmits a signal that is detected by the tag, which then reports that information back to the location engine via a secondary channel.

Key characteristics:

• Accuracy is defined by the coverage radius of the choke point—typically 1 to 3 meters.

• Technologies like infrared (IR) or ultrasound, which are blocked by walls, are often used to contain signals within clearly defined spaces.

• Directional antennas can also help shape detection zones.

Use case examples:

• Room-level tracking in hospitals

• Entry/exit detection in office buildings

• Zone-based asset visibility in warehouses

✅ Analogy: Think of choke points as access control gates. They don’t tell you where someone is inside a room, but they do tell you that someone has entered it.

2.3 Locating in Relative Coordinates

When precise real-time positioning is required—such as tracking automated guided vehicles (AGVs) on a shop floor—RTLS systems shift to relative coordinate locating.

This approach is analogous to indoor GPS: the system calculates the exact position of a tag based on signal data collected from multiple fixed reference points.

How it works:

• A tag emits a signal that’s received by multiple anchors.

• The system uses algorithms like:

  • Trilateration (distance-based)

  • TDoA (time difference of arrival)

  • AoA (angle of arrival)

• Alternatively, a tag receives signals from several anchors and sends those readings to a centralized location engine for processing.

In all cases, the relative positions and distances between anchors must be known—this is known as ranging.

Peer-to-peer variant:

Some advanced RTLS systems support tag-to-tag communication. Tags can exchange distance information with nearby tags and collaboratively determine their own positions before forwarding the data to the server.

Use case examples:

• AGV navigation in smart factories

• Forklift tracking in logistics centers

• Personnel tracking in mission-critical environments

2.4 How RTLS Differs from GPS

Aspect	GPS	RTLS
Environment	Outdoor, global	Indoor or confined areas
Reference Points	Satellites in orbit	Anchors/readers installed on-site
Signal Source	Satellite → receiver (one-way)	Tag ↔ anchor (two-way or hybrid)
Positioning	Absolute (latitude, longitude)	Relative (within local coordinate system)
Accuracy	~5–10 meters (civilian), <1m (military-grade)	Ranges from room-level to centimeter-level
Line of Sight	Required to open sky	Often requires LoS between tag and anchor

RTLS is not a GPS alternative, but a complement in environments where GPS does not work or where more granular, indoor precision is required.

2.5 What Affects RTLS Accuracy?

RTLS accuracy can vary widely depending on both technical and environmental factors.

Positioning Method

Method	How it works	Accuracy Potential
Trilateration	Uses distances to multiple anchors	High
Triangulation	Uses angles of signal arrival	Medium–High
TDoA	Uses time differences between anchors	Very High

Environmental Influences

• Obstructions like walls or machinery can block or distort signals

• Multipath interference occurs when signals reflect off surfaces

• Line of Sight (LoS) is often critical for IR, AoA, or ultrasound systems

Deployment Quality

• Anchor density and layout geometry significantly affect precision

• Synchronization is key for time-based methods like TDoA or ToF

Typical Accuracy Metrics:

• “90% within 1 meter” is a common benchmark

• UWB and AoA systems can reach centimeter-level precision under optimal conditions

2.6 Summary: Choosing the Right Model

Locating Concept	Description	Typical Accuracy
Choke Point	Presence detection at zone entry/exit points	Low (room-level)
Relative Coordinates	Coordinate-based tracking using distance/time/angle	Medium to Very High
GPS	Satellite-based global position tracking	Good outdoors, unusable indoors

Each model serves different needs. Choke points are ideal for zone presence tracking and low-cost deployments, while relative coordinate positioning supports real-time, fine-grained tracking in mission-critical environments. GPS remains dominant outdoors but is fundamentally different from RTLS in architecture and application.

III. What Communication Technologies Enable RTLS?

From RFID to UWB: Exploring Signal Technologies and Devices

Real-Time Locating Systems (RTLS) are built upon a diverse range of technologies, each offering unique methods for detecting and calculating the location of assets, people, or equipment. Depending on factors such as required accuracy, environmental constraints, system complexity, and cost, different RTLS technologies are adopted across industries. Below is a comprehensive overview of the core technologies powering modern RTLS solutions:

3.1 Active RFID

Active RFID systems use battery-powered tags that actively transmit signals to fixed readers. These tags can broadcast over long distances (tens to hundreds of meters) and often include sensors for monitoring temperature, motion, or shock.

• Pros: Long range, reliable in dynamic environments, supports sensing.

• Cons: Higher cost, limited battery life.

Use Cases: Hospital asset tracking, personnel safety systems in mining and oil fields.

3.2 Semi-Active RFID (a.k.a. Battery-Assisted Passive RFID)

These tags use a battery to power onboard sensors or signal processing but only transmit when activated by a reader. This balances the power-efficiency of passive tags with the capabilities of active tags.

• Pros: Longer battery life than active RFID, supports sensing.

• Cons: Shorter range than active RFID, still depends on reader proximity.

Use Cases: Cold chain logistics, warehouse tools.

3.3 Passive RFID with Phased Array Antennas

Passive RFID tags do not have batteries and rely on energy from a reader’s signal to respond. When combined with steerable phased array antennas, it’s possible to estimate the direction of the tag response, enabling location estimation.

• Pros: Inexpensive tags, low maintenance.

• Cons: Limited range and accuracy, complex antenna infrastructure.

Use Cases: Retail inventory tracking, library book management.

3.4 Infrared (IR) and Active RFID-IR Hybrids

Infrared systems use line-of-sight light signals to determine location. Hybrid systems pair infrared transmitters with RFID tags to achieve both identity and room-level location accuracy.

• Pros: High room-level precision, immune to RF interference.

• Cons: Requires unobstructed paths, affected by sunlight and dust.

Use Cases: Indoor room-level tracking (e.g., hospitals, cleanrooms).

3.5 Optical Locating

This method uses cameras or optical sensors to identify location markers such as QR codes, barcodes, or visible tags. It is commonly used in robotics and automation environments.

• Pros: Visual confirmation, high accuracy with the right setup.

• Cons: Requires well-lit and line-of-sight environments.

Use Cases: Robotic navigation, warehouse pick-and-place systems.

3.6 Ultrasound-Based Locating (US-ID / US-RTLS)

Ultrasound-based Real-Time Locating Systems (RTLS) utilize high-frequency sound waves—typically above 20 kHz, beyond the range of human hearing—to determine the location of objects or people. The system is composed of a master ranging unit (typically placed on the tracked object) and multiple fixed ultrasonic responders or anchors installed within the environment.

How It Works:

The process begins when the master unit emits a radio-frequency (RF) signal and simultaneously listens for an ultrasonic response. Upon receiving the RF trigger, each anchor responds by transmitting an ultrasonic pulse. The tag measures the time difference between the RF signal and the received ultrasound to calculate distance, a method known as time-of-flight ranging. By combining these measurements from multiple anchors, the system can apply triangulation or multilateration algorithms to determine the precise position.

• Pros: Offers high accuracy (centimeter level) in enclosed indoor spaces; less affected by RF interference; relatively simple signal processing.

• Cons: Not suitable for large or open environments due to signal attenuation; affected by temperature and airflow; complex environments may cause reflections and increase hardware requirements.

Use Cases: Common in digital pens and interactive devices; also used for equipment tracking in hospitals and unmanned industrial workshops.

3.7 Ultra-Wideband (UWB)

Ultra-Wideband (UWB) is a novel positioning technology that differs significantly from traditional communication-based location systems. It determines positions by enabling communication between newly introduced blind nodes and pre-installed reference nodes such as anchors and bridge nodes, using methods like triangulation or location fingerprinting.

As a high-precision indoor positioning solution, UWB offers nanosecond-level time resolution, which—combined with time-of-arrival-based distance measurement algorithms—can theoretically achieve centimeter-level accuracy, fully meeting the demands of industrial-grade applications.

Pros:

• Very wide bandwidth (in GHz range), allowing high-resolution positioning

• Strong penetration capability and resistance to multipath interference

• High security and signal stability

Cons:

• Higher power consumption, as even blind nodes must actively transmit

• Relatively high system cost, due to hardware and installation requirements

Use Cases:

UWB is applicable to radar sensing and is widely used for indoor high-precision positioning and navigation across industrial, commercial, and security domains.

3.8 Bluetooth (BLE, including Bluetooth 5.1 AoA)

BLE-based RTLS solutions estimate indoor positions using methods like RSSI, RTT, or AoA (introduced in Bluetooth 5.1). Systems typically rely on Bluetooth beacons installed throughout a facility, forming a micro-network that interacts with mobile devices or tags to determine location.

The most common approaches are:

• RSSI-based trilateration: Simple and low-cost, but sensitive to interference.

• Fingerprinting: Matches signal patterns to a prebuilt map; offers better accuracy but requires heavy calibration.

• Hybrid methods: Combine signal filtering (e.g., Kalman, Gaussian) and inertial data to improve reliability.

Real-world BLE systems can achieve around 70% accuracy within 2 meters, with high-end setups reaching 90% in controlled environments. However, signal reflections and indoor interference (due to BLE’s 2.4GHz frequency) can affect stability.

Pros:

• Compact, low-power, and smartphone-compatible

• Scalable for people-centric indoor applications

• No line-of-sight required

Cons:

• Lower accuracy with RSSI alone

• Fingerprinting is labor-intensive to maintain

• AoA needs special antennas; system stability may vary in complex spaces

Use Cases:

• Retail heatmap analysis

• Office occupancy tracking

• Indoor navigation (malls, hospitals, libraries)

• Smart visitor management

3.9 Wi-Fi (WLAN) RTLS

Wi-Fi RTLS uses existing wireless access points to triangulate the location of devices based on signal strength or fine timing measurements (FTM, part of IEEE 802.11mc). It allows device tracking without additional infrastructure.

• Pros: Utilizes existing networks, supports tracking smartphones or laptops.

• Cons: Limited precision (typically 3–5 meters), crowded spectrum can reduce reliability.

Use Cases: Campus-wide asset tracking, personnel movement analytics.

3.10 Low-Frequency Signpost Systems

In this system, fixed signposts emit low-frequency signals, and mobile tags recognize which signpost they’re near. It offers “check-in” style location awareness without true coordinates.

• Pros: Extremely low power, simple infrastructure.

• Cons: No continuous tracking, coarse location accuracy.

Use Cases: AGV path tracking in warehouses, elderly care movement monitoring.

3.11 Radio Beacon / Narrowband Systems

Simple radio beacons broadcast unique IDs, and receivers estimate location based on proximity or triangulation. These are sometimes used in conjunction with other systems (e.g., GPS fallback indoors).

• Pros: Simple and robust, low energy.

• Cons: Not precise on their own.

Use Cases: Emergency tracking, visitor presence monitoring.

3.12 Hybrid & Bivalent Systems

Some RTLS solutions combine multiple technologies (e.g., RFID + IR, Bluetooth + AoA, UWB + TDoA) to enhance accuracy and reliability across different scenarios. These systems are often referred to as bivalent or hybrid.

• Pros: Balances cost, precision, and resilience.

• Cons: Requires more complex integration.

Use Cases: Hospitals, smart buildings, hybrid retail/warehouse environments.

Final Note on Standards and Models

Although many of these technologies serve real-time locating purposes, not all of them fully comply with international RTLS standards such as ISO/IEC 19762-5 and ISO/IEC 24730-1. Nevertheless, each offers specific benefits in terms of range, precision, and infrastructure flexibility. Selecting the most suitable RTLS technology should be guided by a model that considers:

• Required accuracy

• Deployment environment

• Power constraints

• Integration with existing systems

Academic institutions like Radboud University have proposed frameworks to support this decision-making process, particularly in large-scale or mission-critical deployments.

IV. How Do RTLS Systems Calculate Location?

Ranging, Angulating, and Hybrid Positioning Methods Explained

Real-Time Locating Systems (RTLS) rely on advanced signal processing techniques to calculate the position of a tag in real time. Depending on the technology used—whether it’s UWB, BLE, RFID, or ultrasound—RTLS systems apply various forms of ranging (distance measurement), angulating (direction estimation), or a combination of both.

This chapter introduces the primary methods RTLS uses to determine position, including time-based, signal strength–based, angle-based, near-field, and hybrid methods.

4.1 Time-Based Positioning Methods

These methods measure the signal travel time to estimate distance between a tag and anchor(s).

Time of Arrival (ToA)

Measures the absolute time it takes for a signal to travel from a tag to an anchor.

• Requires precise clock synchronization

• Used in UWB systems for high-accuracy needs

Time Difference of Arrival (TDoA)

Determines the location based on the difference in signal arrival time across multiple anchors.

• Tag doesn’t need a clock

• Ideal for scalable, large-area deployments

• Used in UWB and GPS

Time of Flight (ToF)

General method for calculating distance from signal travel time—either one-way or round-trip.

• One-way ToF needs synchronization

• Round-trip ToF doesn’t

• Used in UWB and IR-based tracking

Two-Way Ranging (TWR)

Measures round-trip time between anchor and tag to calculate distance.

• No clock sync needed

• Used in Bluetooth, Wi-Fi, RFID

• Patented by companies like Nanotron

Symmetrical Double-Sided TWR (SDS-TWR)

An enhanced form of TWR where both tag and anchor exchange multiple time-stamped signals.

• Improves accuracy by eliminating internal delays

• Often implemented in UWB or industrial-grade RTLS

4.2 Signal Strength–Based Positioning

RSSI – Received Signal Strength Indication

Estimates distance based on the strength of received signals.

• Simple and cost-effective

• Accuracy limited and sensitive to interference

• Used in BLE, Wi-Fi, Zigbee

4.3 Angle-Based Positioning

AoA – Angle of Arrival

Determines the incoming signal angle using antenna arrays.

• Doesn’t require clock sync

• Accurate within 0.5–1 meter

• Requires special hardware

• Used in BLE 5.1, UWB

AoD – Angle of Departure

Determines the outgoing signal angle from an anchor to a tag.

• Used in mobile-centric RTLS where the tag computes its own position

• Supported in Bluetooth Direction Finding (see US 7376428 B1)

• Helps decentralize processing load

Line of Sight (LoS)

Not a method itself, but a physical condition required by some technologies (e.g., IR, optical, ultrasound).

• Without LoS, systems like AoA or IR may lose accuracy

• Important design consideration

4.4 Near-Field Electromagnetic Ranging (NFER)

NFER uses near-field electromagnetic coupling to estimate distance over short ranges (typically <3 meters). Unlike traditional radio-frequency methods, it works reliably without LoS and is less affected by environmental noise.

• Ideal for dense indoor environments

• Requires close tag-anchor proximity

• Used in access control, short-range asset tracking

4.5 Hybrid Positioning Methods

Combining multiple positioning methods allows RTLS systems to improve accuracy, reduce error, and increase robustness.

RSSI + AoA

Uses signal strength for proximity and angle for direction.

• Used in BLE 5.1 indoor tracking

• Provides 2D or 3D positioning without heavy infrastructure

TDoA + AoA

Combines precise timing from TDoA with direction from AoA.

• Offers cm-level accuracy in large facilities

• Common in UWB-based industrial RTLS

RSSI + ToF or RTT

Uses signal strength for fast estimation, then refines it with time-of-flight or round-trip delay.

• Improves performance over RSSI alone

• Suitable for Bluetooth and Wi-Fi navigation

TDoA + RSSI

Leverages TDoA for precise localization, with RSSI as a redundancy or quality filter.

• Useful in harsh or signal-dense environments

• Helps maintain performance when TDoA data is degraded

4.6 Summary Table

Method	Category	Sync Required?	Accuracy	Example Technologies
TOA / ToF	Time-based	Yes	High	UWB, IR
TDoA	Time-based	Only at anchors	Very High	UWB, GPS
TWR / SDS-TWR	Time-based (round trip)	No	Medium–High	UWB, BLE, Nanotron
RSSI	Signal strength–based	No	Low	BLE, Wi-Fi
AoA / AoD	Angle-based	No	Medium–High	BLE 5.1, UWB
NFER	Near-field	No	Short-range	Industrial IoT, smart shelves
Hybrid	Mixed	Varies	Very High	Smart buildings, factories

V. What Are the Typical Applications of RTLS?

From Smart Factories to Secure Facilities: A Cross-Industry Overview

Real-Time Locating Systems (RTLS) are becoming a foundational component in the digital transformation of industries. As more sectors pursue automation, transparency, and operational intelligence, RTLS has evolved from a niche tracking tool into a critical infrastructure for smart environments.

This chapter explores the typical and emerging RTLS applications across industries—ranging from manufacturing and logistics to healthcare, public safety, and beyond. It reveals how RTLS enables smarter, safer, and more responsive systems by providing real-time location awareness of people, assets, and processes.

5.1 Smart Manufacturing & Industrial Automation

In the era of Industry 4.0, RTLS plays a key role in building smart factories by enabling fine-grained monitoring and control over dynamic production environments.

Application Scenarios:

• Tracking AGVs (Automated Guided Vehicles), forklifts, and mobile robots

• Monitoring work-in-progress (WIP) flow through production lines

• Ensuring tool availability and preventing equipment misplacement

• Alerting operators when personnel enter restricted areas

• Real-time personnel safety management in high-risk zones (e.g., steel, metallurgy, chemicals)

Applicable Industries:

• Automotive and electronics assembly

• Textile and dyeing

• Integrated circuit (IC) manufacturing

• Smart power plants

• Smart industrial parks

5.2 Smart Healthcare & Elderly Care

RTLS improves both operational efficiency and patient safety in healthcare settings, while also supporting the growing demands of smart elderly care systems.

Application Scenarios:

• Locating medical equipment (e.g., wheelchairs, ventilators)

• Monitoring patient flow and reducing ER congestion

• Preventing infant abduction through zone-based alerts

• Supporting fall detection and wandering prevention in elderly care centers

• Linking location data with EMR and nurse call systems

Applicable Settings:

• Hospitals and outpatient clinics

• Assisted living and retirement communities

• Specialized rehabilitation centers

5.3 Smart Commercial & Service Spaces

Retail, finance, and commercial real estate sectors are embracing RTLS to create smart customer experiences and improve operational insight.

Application Scenarios:

• Customer traffic analysis and heatmaps in shopping malls and smart supermarkets

• Queue management and branch performance tracking in smart banks

• Indoor navigation and visitor behavior analysis in exhibition halls, libraries, and office parks

• Asset and personnel tracking in smart properties and smart buildings

Applicable Scenarios:

• Smart shopping malls

• Smart libraries

• Smart banks

• Smart real estate and property management

5.4 High-Risk & Industrial Environments

In complex or hazardous environments, RTLS provides life-critical visibility and automated safety enforcement.

Application Scenarios:

• Personnel location tracking in tunnels, chemical plants, and refineries

• Emergency evacuation support in underground or large-scale sites

• Real-time headcount verification in mining and confined spaces

• Tracking and auditing of tools and heavy vehicles

Applicable Industries:

• Underground coal mines

• Oil & gas, petrochemical

• Tunneling and subway construction

• Smart energy infrastructure

• Steel and metallurgy

5.5 Public Safety & Government Applications

RTLS enhances control, accountability, and safety in sensitive public domains.

Application Scenarios:

• Monitoring staff, visitors, and detainees in smart detention centers and jails

• Geofencing and traceability for courtroom visitors or high-risk individuals

• Enhancing law enforcement mobility and coordination

• Integrating real-time location data into command and control systems

Applicable Sectors:

• Smart prisons and correctional facilities

• Court visitor systems

• Law enforcement and security centers

• Emergency operations and dispatch systems

5.6 Smart Transportation & Mobility

As urban environments become more digitized, RTLS helps optimize mobility infrastructure and traffic operations.

Application Scenarios:

• Smart parking with real-time occupancy tracking

• Vehicle positioning in depots, bus yards, and logistics terminals

• Crowd and flow management in smart subway systems and transport hubs

Applicable Sectors:

• Smart metro and bus stations

• Airport logistics zones

• Urban parking and mobility platforms

Summary Table: RTLS Use Cases Across Smart Sectors

Smart Sector	Typical Applications	Key Benefits
Smart Manufacturing	WIP tracking, tool management, safety enforcement	Higher efficiency, reduced downtime
Smart Healthcare	Equipment tracking, patient flow, infant security, elderly care monitoring	Better care, higher safety, automated records
Smart Retail & Property	Visitor flow analysis, smart navigation, loss prevention	Enhanced experience, layout optimization
Smart Industry	Worker tracking, evacuation, hazardous zone alerts	Accident reduction, real-time safety assurance
Public Safety & Law	Prisoner tracking, courtroom visitor logging, law enforcement oversight	Improved security, full accountability
Smart Transportation	Smart parking, vehicle positioning, crowd control	Faster flow, optimized traffic operations

From smart factories to smart courts, RTLS is emerging as a universal location infrastructure powering the next generation of intelligent environments. Its flexibility, scalability, and precision make it adaptable to a wide range of industries—from logistics and healthcare to mining, education, public safety, and urban mobility.

As the ecosystem around RTLS matures and merges with AI, edge computing, and IoT platforms, its role will only grow more central to the real-time intelligence and automation of future-ready industries.

VI. What Are the Strengths and Limitations of RTLS?

Understanding the Capabilities and Constraints of Real-Time Locating Systems

RTLS has quickly become a core technology in smart manufacturing, logistics, healthcare, and many other industries. But while it offers tremendous advantages in real-time visibility and automation, RTLS is not without its trade-offs.

This chapter outlines the key strengths that make RTLS valuable, and the practical limitations that organizations must understand when planning and deploying such systems.

6.1 Key Strengths of RTLS

Real-Time Visibility

RTLS provides continuous tracking of assets, people, and vehicles—allowing businesses to act on live data instead of relying on historical logs or manual updates.

Example: A factory can instantly locate any AGV or tool in motion, optimizing task assignment and reducing search time.

Improved Operational Efficiency

By eliminating blind spots and automating tracking processes, RTLS enables:

• Faster equipment retrieval

• Streamlined inventory flow

• More efficient personnel deployment

Example: Hospitals reduce idle time by quickly locating mobile medical devices.

Enhanced Safety & Security

RTLS can define geofences and alert staff if a person or object enters or exits a restricted area. It also helps monitor lone workers in hazardous environments.

Example: In a power plant, RTLS can trigger alerts when a technician remains in a danger zone too long.

Accurate Data for Analysis

Unlike manual check-ins or badge scans, RTLS provides rich, time-stamped movement data that fuels:

• Process optimization

• Space utilization studies

• Compliance documentation

Automation Integration

RTLS data can be integrated with ERP, WMS, MES, or AI-based analytics platforms to enable:

• Auto-routing of materials

• Workforce optimization

• Predictive maintenance

Scalability and Flexibility

Modern RTLS systems (especially those using BLE or UWB) can scale from small rooms to large facilities, and support flexible zone configurations or coordinate tracking depending on use case.

6.2 Limitations and Challenges of RTLS

While RTLS is powerful, it’s not a silver bullet. Several technical, financial, and environmental constraints can impact its effectiveness.

Installation Complexity

Some RTLS systems require extensive infrastructure (anchors, cables, power supply) to function properly—especially those based on TDoA or AoA.

Example: Retrofitting an older building with UWB anchors may require structural modifications and downtime.

Accuracy Depends on Environment

RTLS accuracy is often affected by:

• Multipath interference

• Metal structures

• Dense walls or shelving

• Moving obstacles (e.g., people, machinery)

This makes performance inconsistent across different zones if not carefully planned.

Cost of Deployment and Maintenance

High-accuracy systems like UWB involve:

• Expensive tags and anchors

• Specialized installation

• Ongoing battery replacement or calibration

This can pose a barrier for small-scale or budget-constrained operations.

Power and Battery Limitations

Active tags (BLE, UWB, etc.) rely on battery power, which:

• Limits tag lifespan

• Requires recharging or battery swaps

• Adds maintenance overhead

Passive RFID or IR tags mitigate this but sacrifice accuracy and range.

Data Integration and IT Overhead

Connecting RTLS with existing ERP, WMS, or MES platforms may require:

• Custom APIs

• Middleware development

• Cybersecurity safeguards

Smaller organizations may lack the IT resources for smooth integration.

Privacy and Compliance Concerns

Tracking employees or visitors in real time raises ethical and regulatory issues:

• GDPR and local privacy laws

• Consent management

• Data access and usage transparency

RTLS systems must include access control and logging mechanisms to protect individual rights.

6.3 When Is RTLS a Good Fit?

RTLS delivers the most value when:

• Real-time location data is mission-critical

• Manual tracking is error-prone or too slow

• Compliance and audit requirements are strict

• Labor costs are high and automation is needed

• High-value assets frequently move across zones

• Safety zones or geofencing are required

6.4 When Might RTLS Not Be Ideal?

RTLS may not be the right fit when:

• Tracking can be done at fixed points (e.g., barcode scans at workstations)

• Environments are too small or static to justify the cost

• The organization lacks IT or facility support for deployment

• Privacy regulations prohibit real-time personnel tracking

6.5 Summary Table: RTLS Pros and Cons

Aspect	Strength	Limitation
Visibility	Real-time tracking of people/assets	Requires sufficient anchor/tag coverage
Accuracy	Centimeter-level (UWB/AoA) in optimal setups	Sensitive to interference and obstructions
Automation	Enables process triggers and analytics integration	Complex to integrate with legacy systems
Safety	Geofencing, alerting, lone worker protection	May require extensive infrastructure in hazardous zones
Cost	Long-term ROI via efficiency gains	High upfront hardware and deployment costs
Scalability	Supports multi-floor and large-area deployments	Needs careful planning and anchor calibration
Privacy	Enhances asset control, auditability	Requires policy compliance and ethical safeguards

RTLS is a powerful tool when applied strategically in the right environment. Its ability to deliver visibility, automation, and control is transforming industries—but it must be implemented with an understanding of its technical and operational boundaries.

As the RTLS ecosystem continues to mature—with better hardware, edge computing, and AI-enhanced analytics—many of today’s limitations are already being addressed. The future of RTLS is not just about location—it’s about real-time intelligence embedded into every square meter of a smart facility.

Final Words

As industries embrace digital transformation, Real-Time Locating Systems (RTLS) are no longer a luxury—they are becoming the foundation for visibility, safety, automation, and intelligence in dynamic environments.

From manufacturing lines and hospital wards to underground mines and smart campuses, RTLS empowers organizations to know what is where, when, and why it matters. By turning location data into actionable insight, RTLS closes the gap between physical operations and digital control.

Yet, RTLS is not a one-size-fits-all solution. Its success depends on:

• Choosing the right locating model for your scenario (choke point vs. coordinate)

• Selecting the appropriate technologies and algorithms for your environment

• Understanding its limitations, from cost and complexity to infrastructure and privacy

• Carefully planning for deployment, integration, and long-term maintenance

As hardware becomes smaller, cheaper, and more powerful—and as RTLS merges with AI, IoT, and 5G—its capabilities will expand even further. In the coming years, RTLS will not just tell us where things are, but help us predict where they should be.

RTLS is not just about tracking—it’s about enabling real-time decision-making across the physical world.

Whether you are optimizing a factory, modernizing a hospital, or building a smart city, understanding RTLS today will put you ahead of tomorrow.
