Structure Composition and Key Components of the Thermal Printhead

By |Last Updated: 24 July, 2024|Categories: Thermal Printhead|2.2 min read|

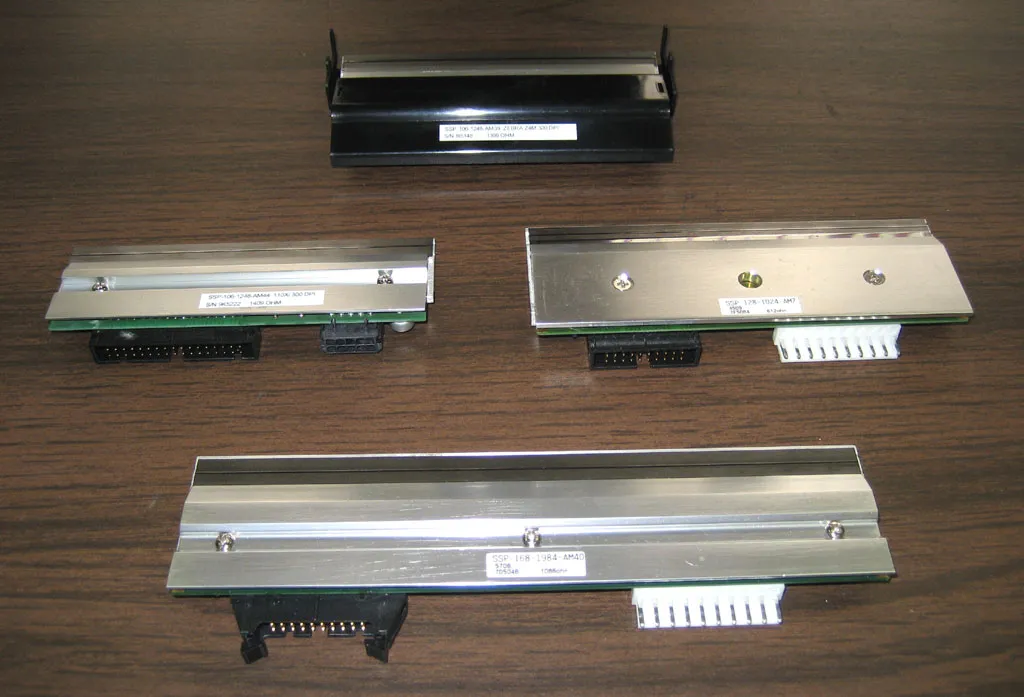

Components of the Thermal Printhead_0_1

When utilizing thermal printing technology, the thermal printhead is considered a crucial component responsible for generating images and text in printers, achieving printing through thermal paper or thermal labels. This article delves into the structural composition of the thermal printhead and its essential components.

Structural Composition

Substrate:

The foundation of the thermal printhead is a thin yet sturdy substrate, typically made of ceramic or glass. This substrate supports and protects the other components.

Resistor Layer:

Coated on the substrate is the resistor layer, the core of the thermal printhead. When current passes through this layer, it generates heat, facilitating the desired changes in the printing material.

Cutting Element:

The cutting element on the thermal printhead is employed to interrupt the current, controlling the release of thermal energy. This is a crucial component enabling precise image and character formation.

Connector:

Acting as a bridge between the thermal printhead and the printer circuit board, the connector facilitates the transmission of current and signals, making the printing process possible.

Key Components

Electronic Control Unit:

Serving as the brain of the thermal printhead, the electronic control unit manages current transfer, operation of cutting elements, and overall control of the printing process. It usually collaborates with the main control system of the printer.

Heating Element:

The heating element is a critical component generating heat through the resistor layer, enabling the printhead to reach the required temperature rapidly for printing operations.

Temperature Sensor:

To ensure stability and reliability during the printing process, thermal printheads are often equipped with temperature sensors. These sensors monitor and adjust the temperature of the printhead to adapt to varying printing conditions.

Metal Layer:

Some thermal printheads incorporate a metal layer for heat dissipation, preventing overheating and potential damage to the printhead.

The structural composition and key components of the thermal printhead work together to ensure the proper functioning of the printer. A deeper understanding of these components enhances comprehension of the working principles of thermal printing technology, facilitating better usage and maintenance of printers. It is hoped that this article aids in your understanding of the thermal printhead.
